DIMENSION TABLE KEY

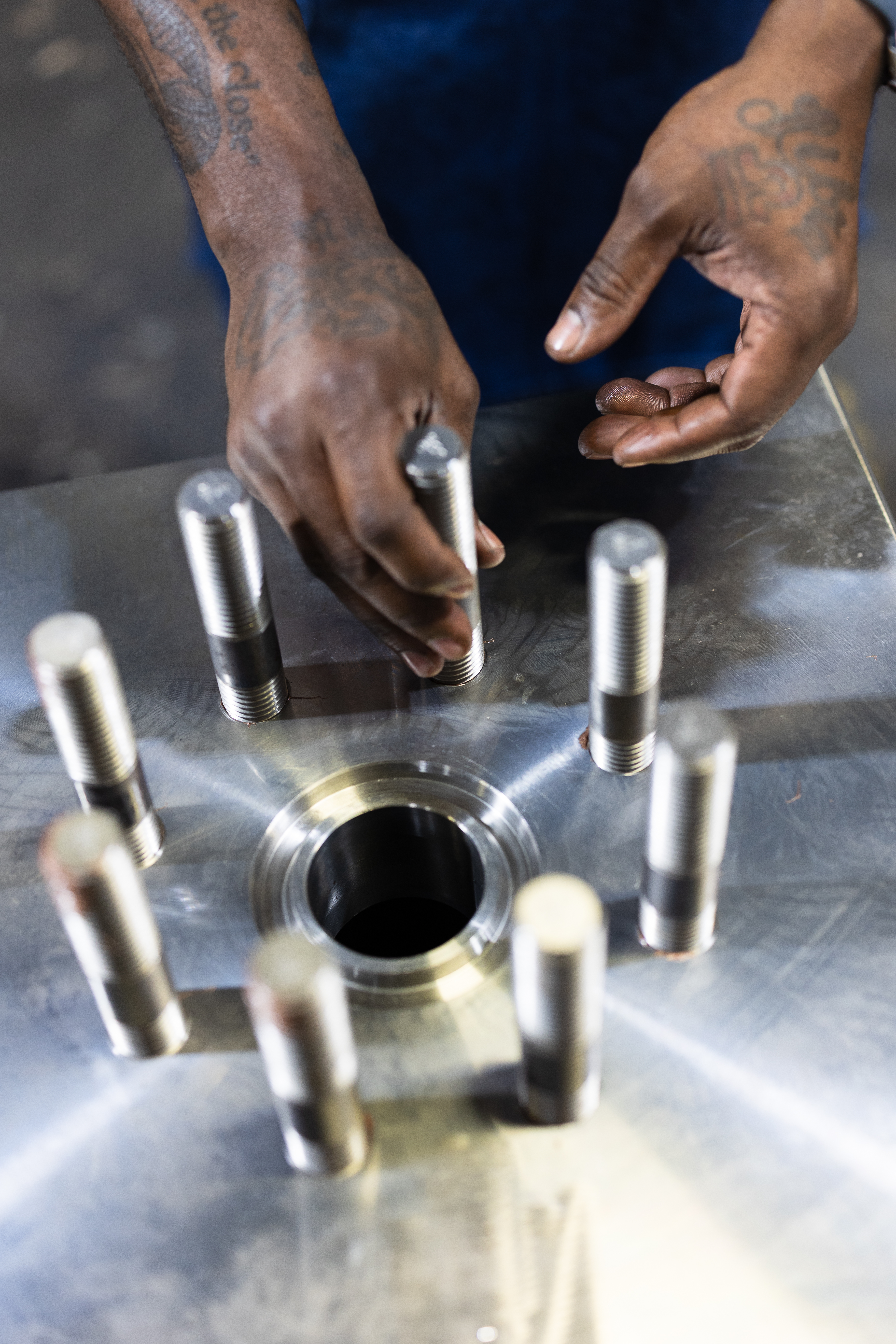

| Key | Description |
|---|---|
| A | Face to Face |
| B | Valve Bore Size (Nominal) |
| C | Bore Centerline to Bottom |
| D | Bore Centerline to Top |
| E | Handwheel Diameter |
| NT | Number of Turns |
| RJ | Ring Joint |
| TS | Thread Size |
| BBS | Bonnet Stud Size |
| N | Number of Studs |
| WT | Approximate Weight |
| HT | Handwheel Operating Torque |

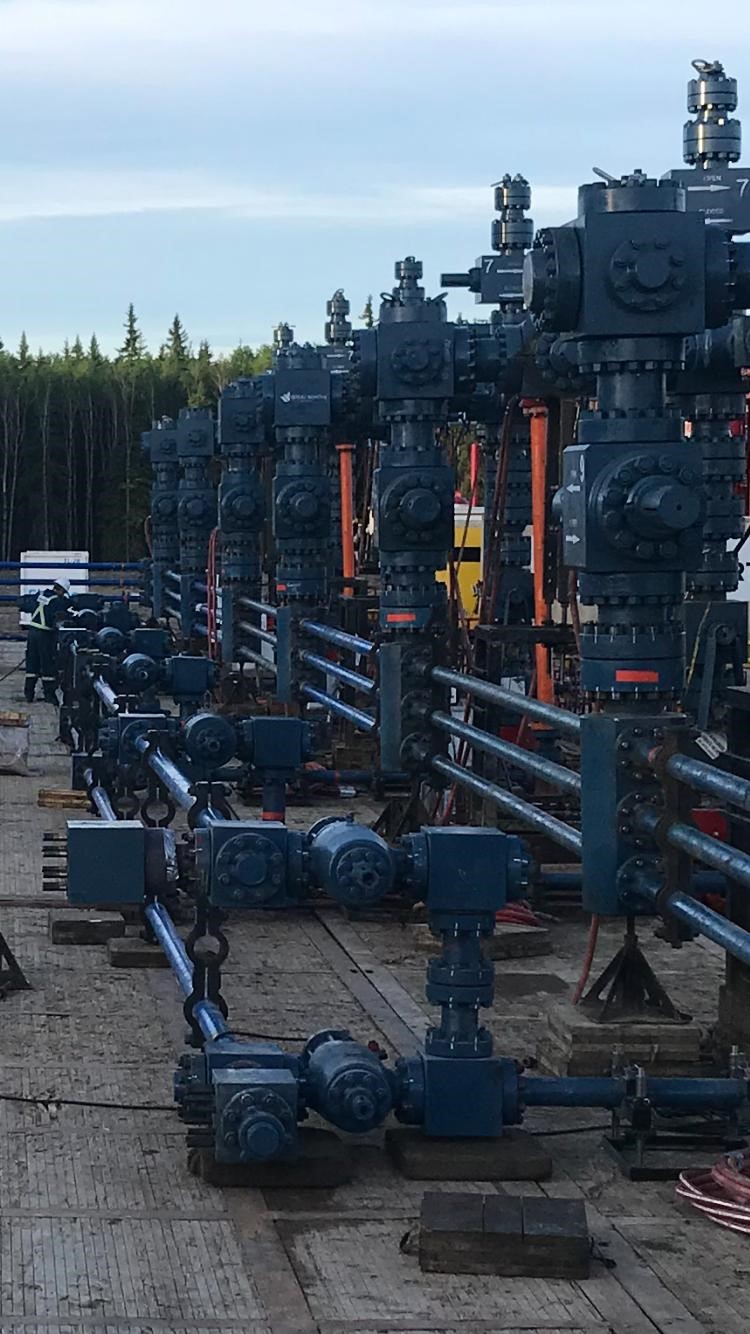

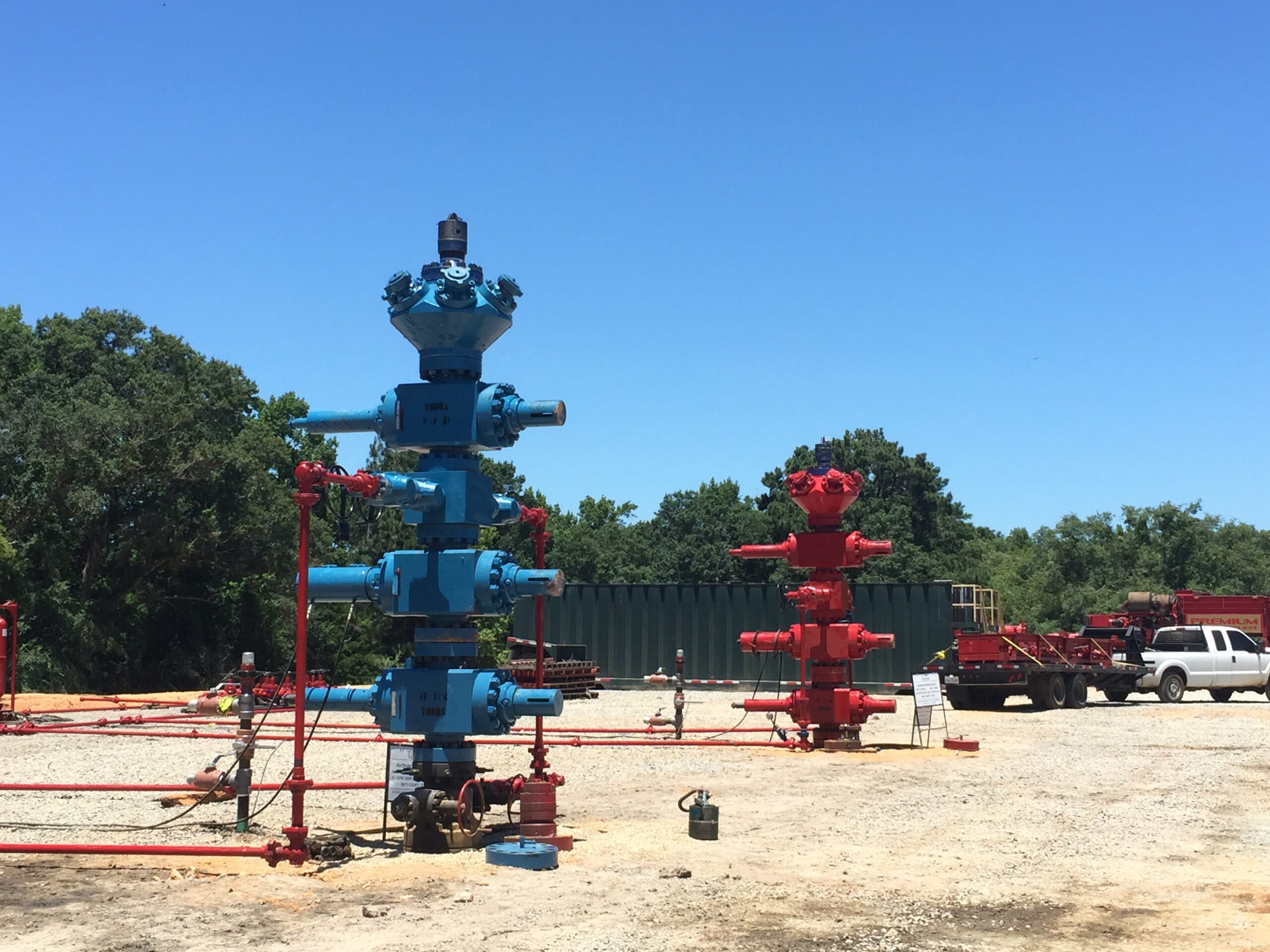

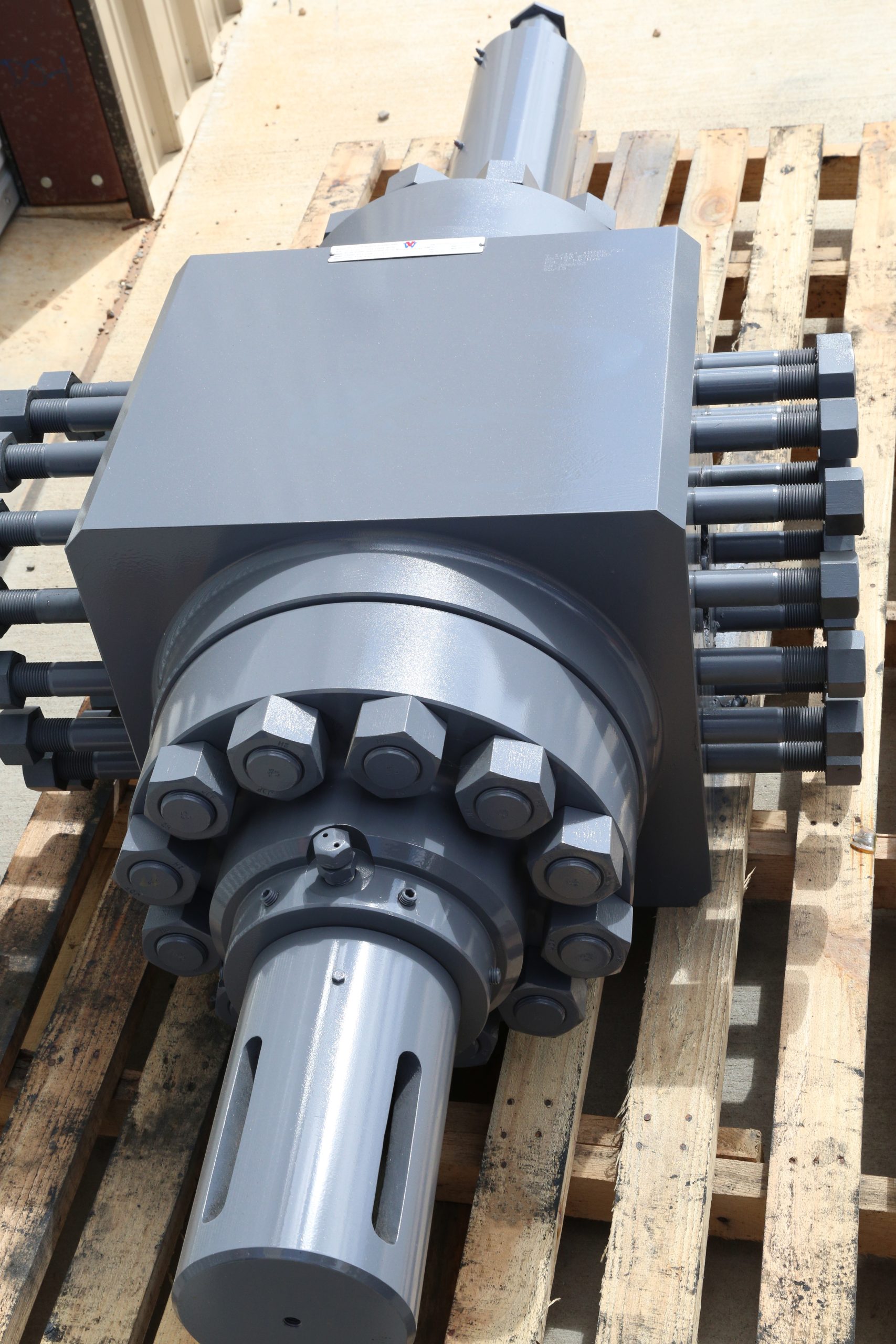

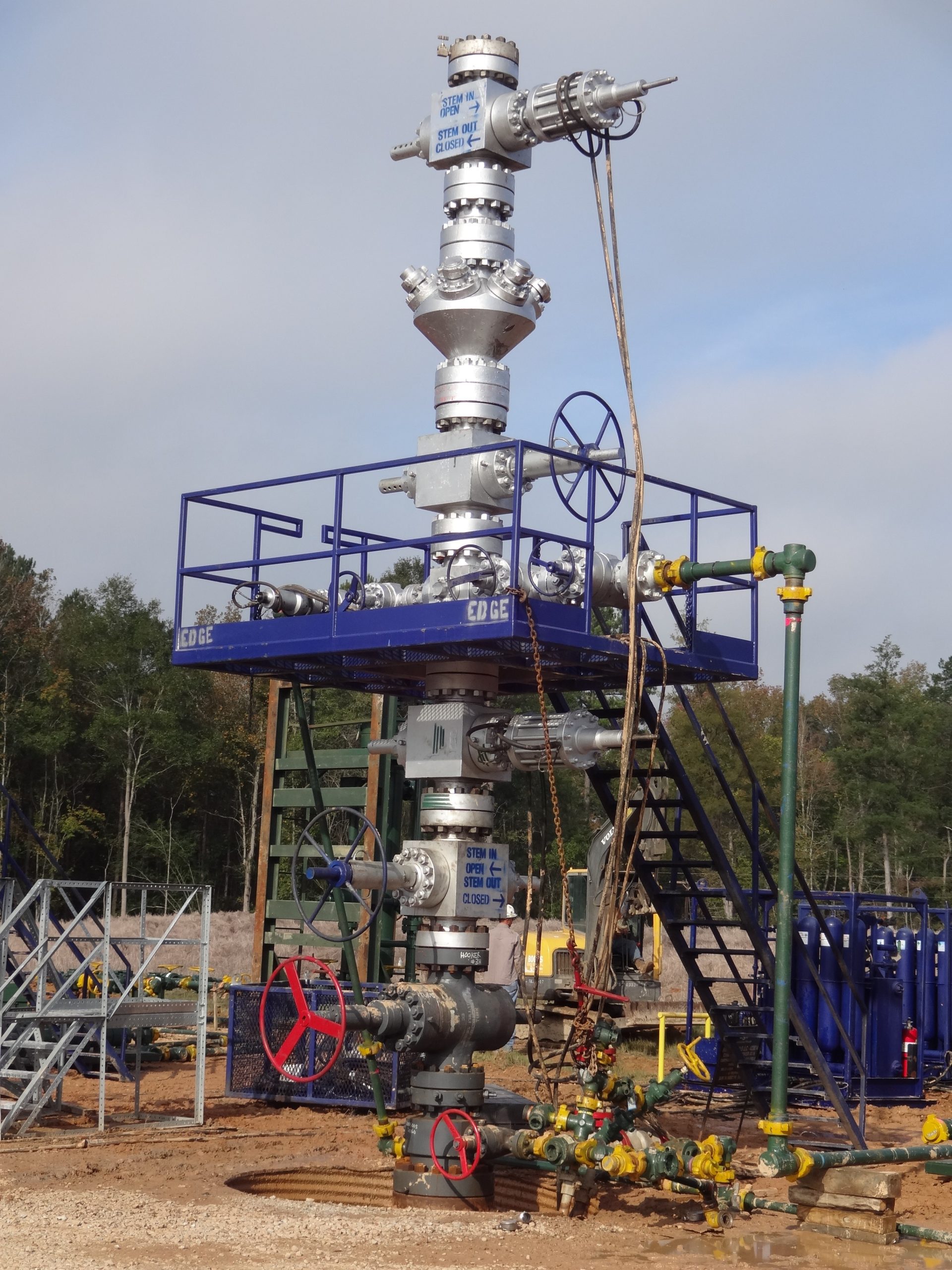

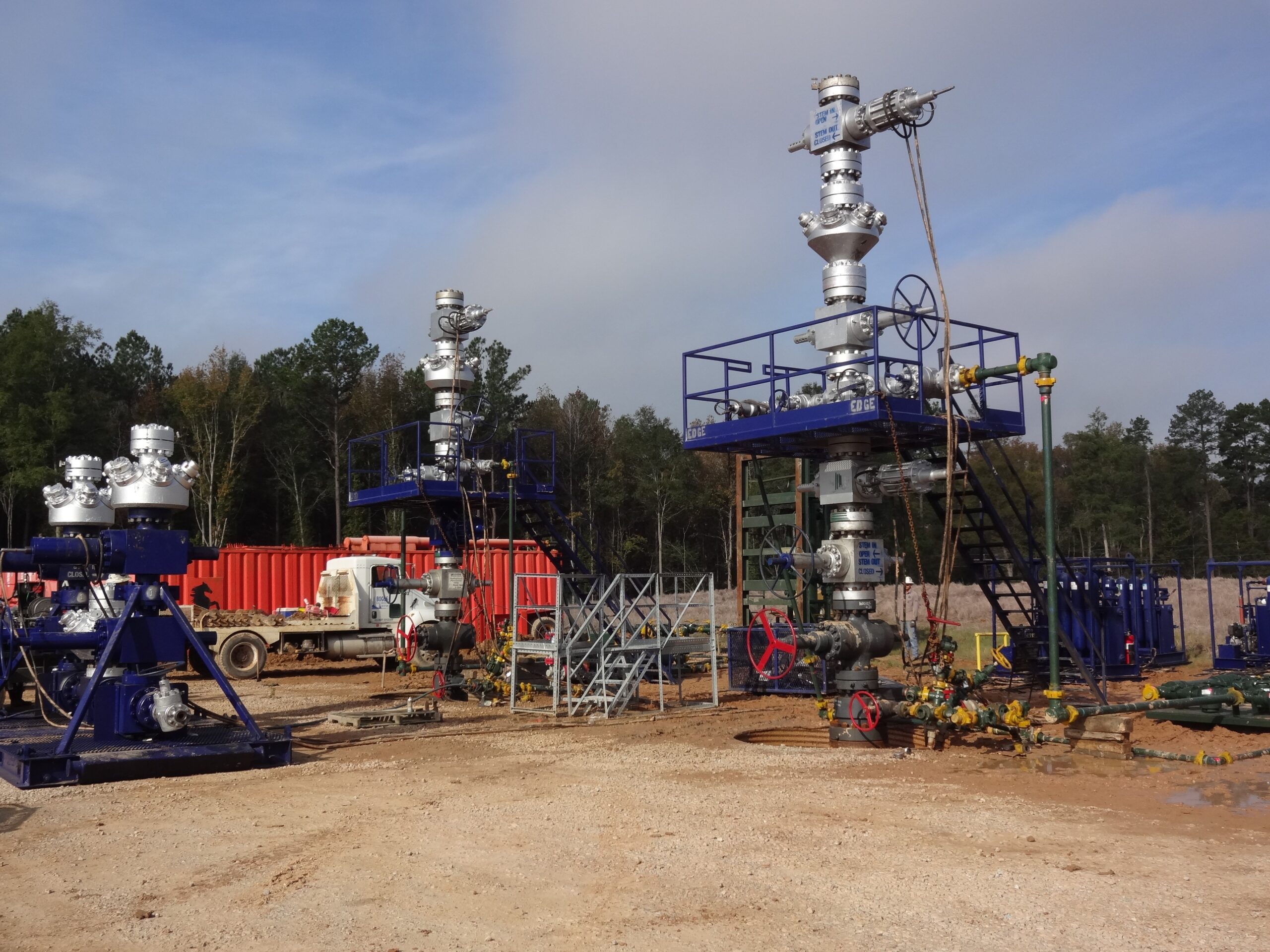

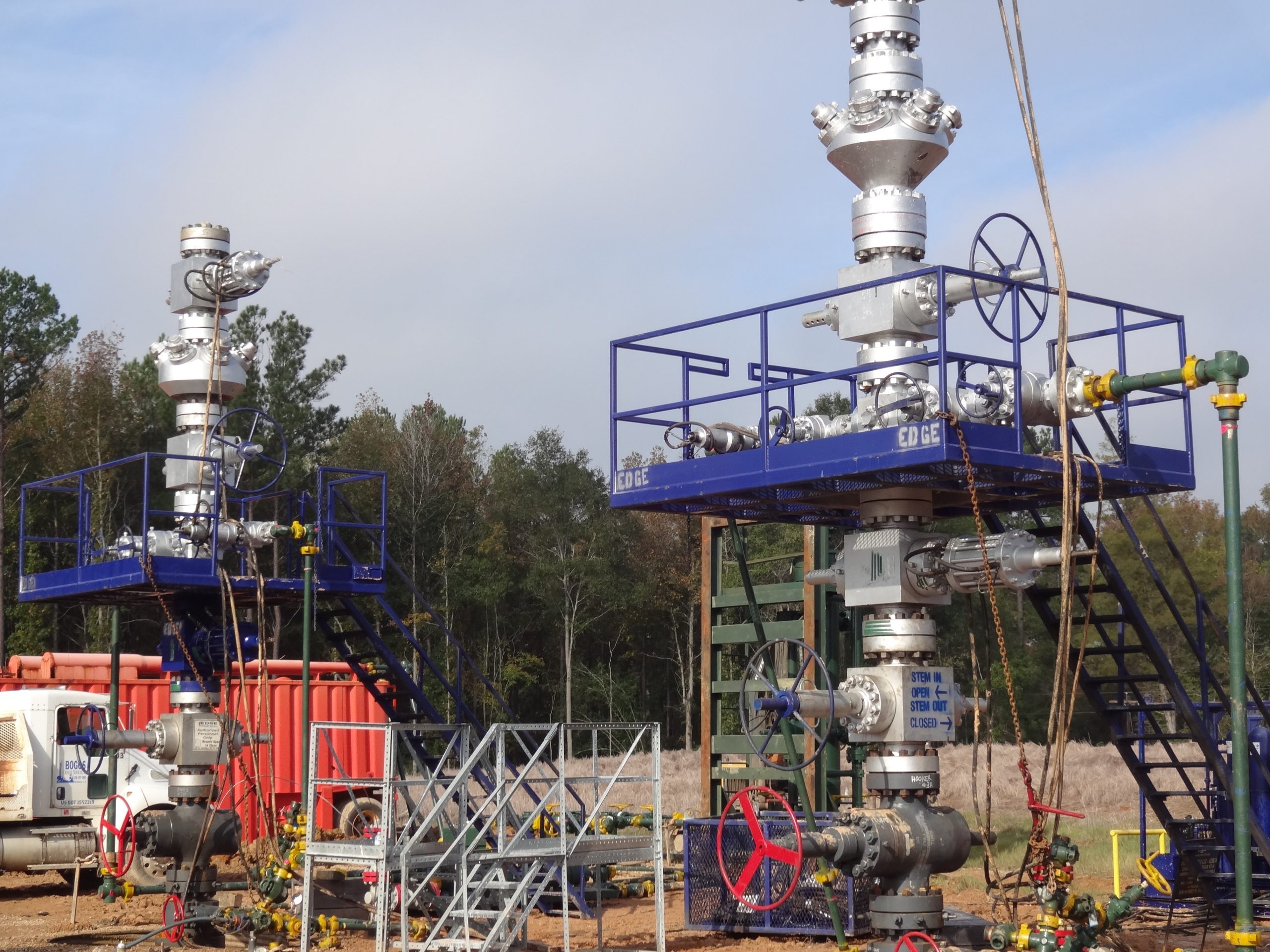

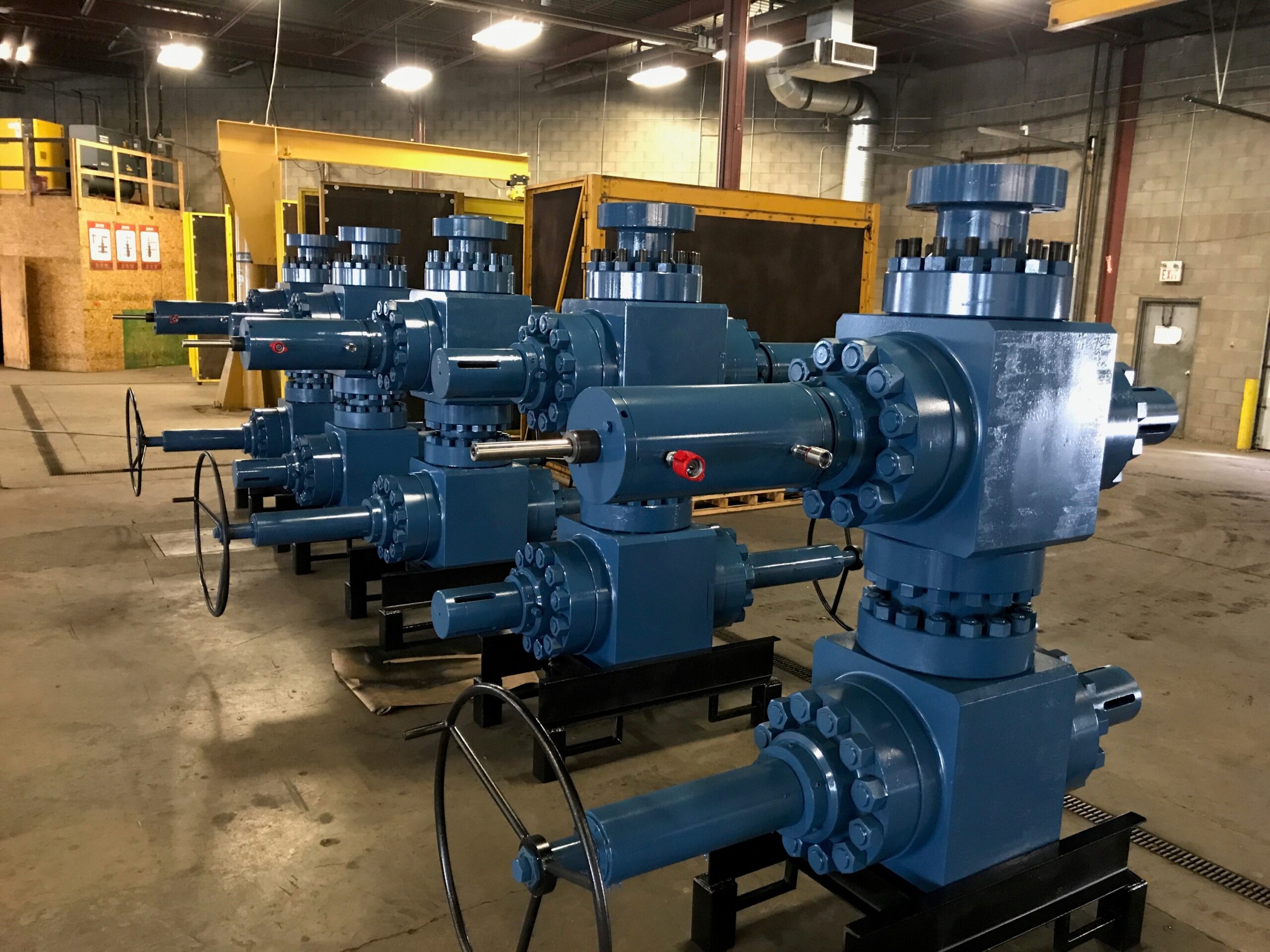

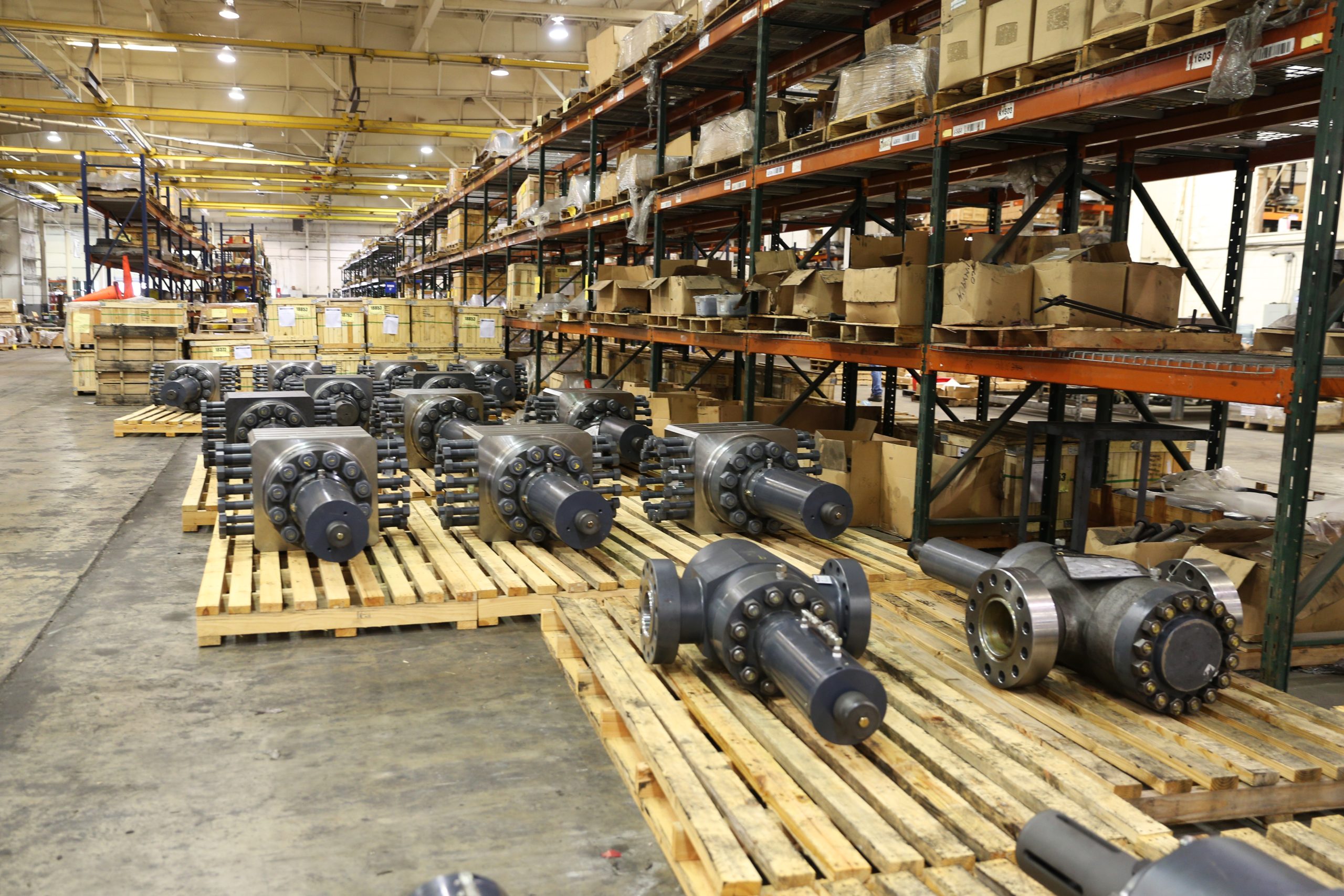

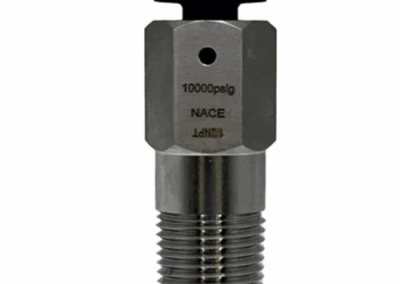

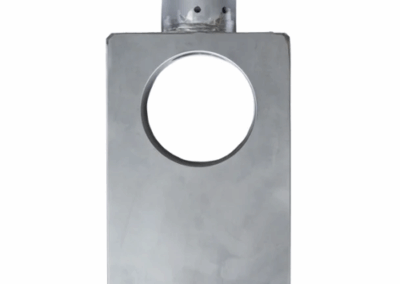

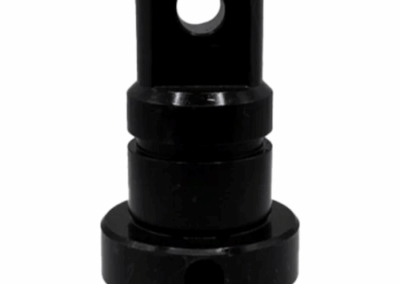

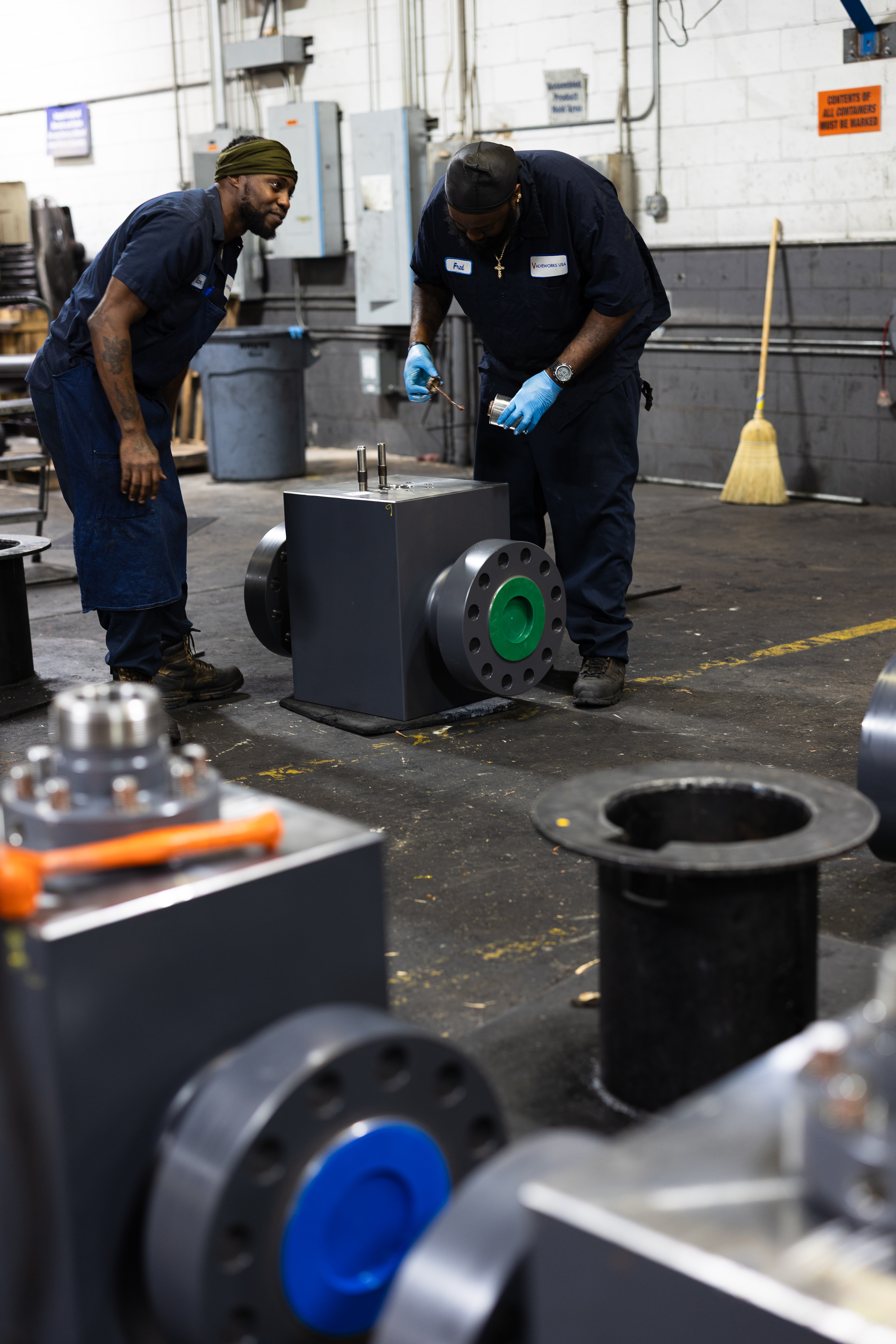

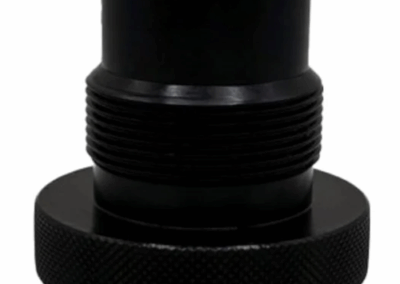

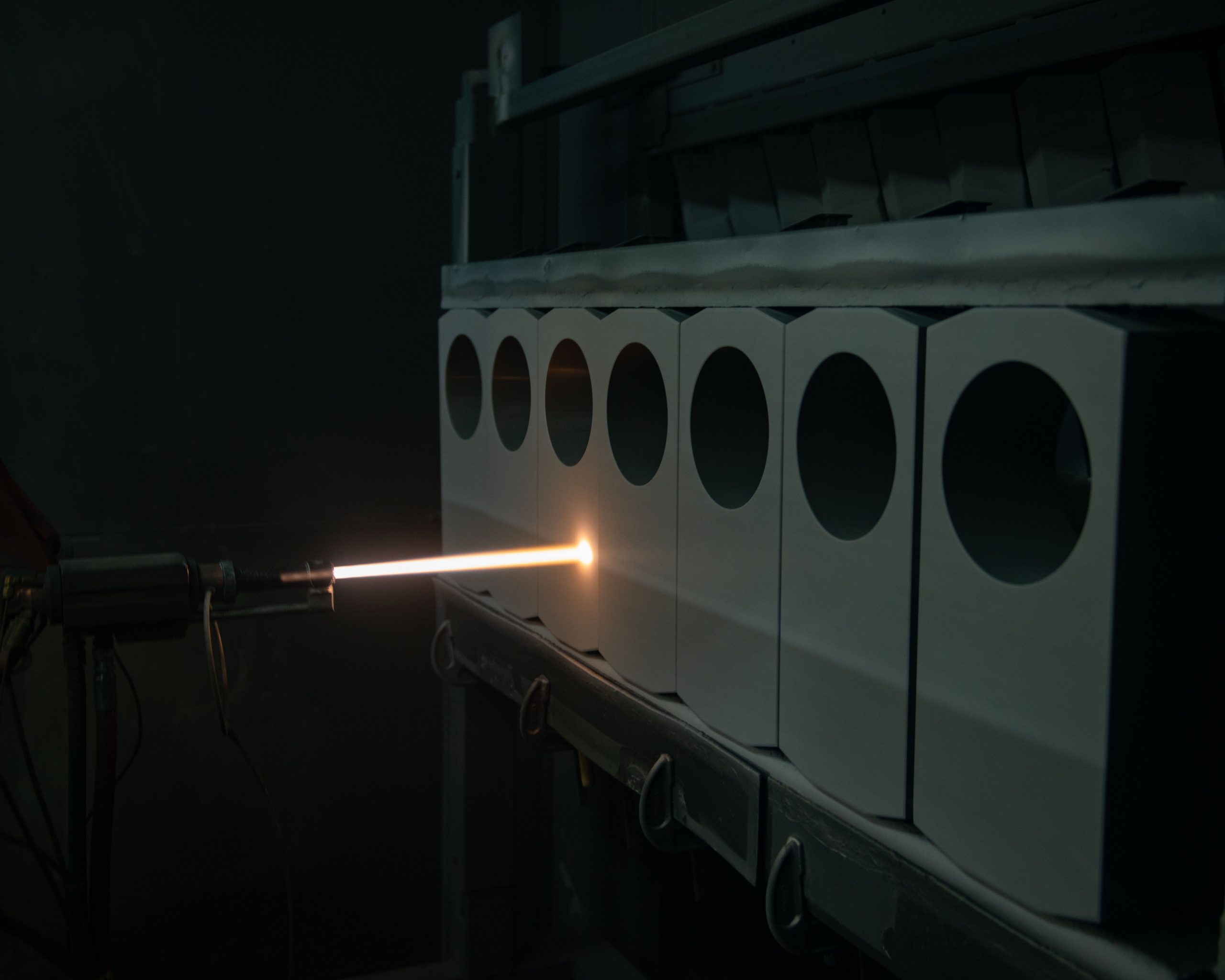

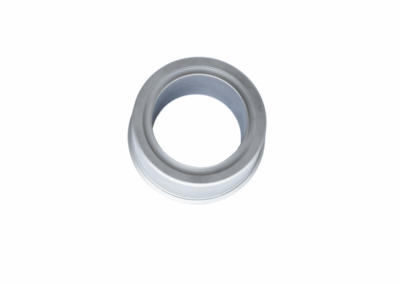

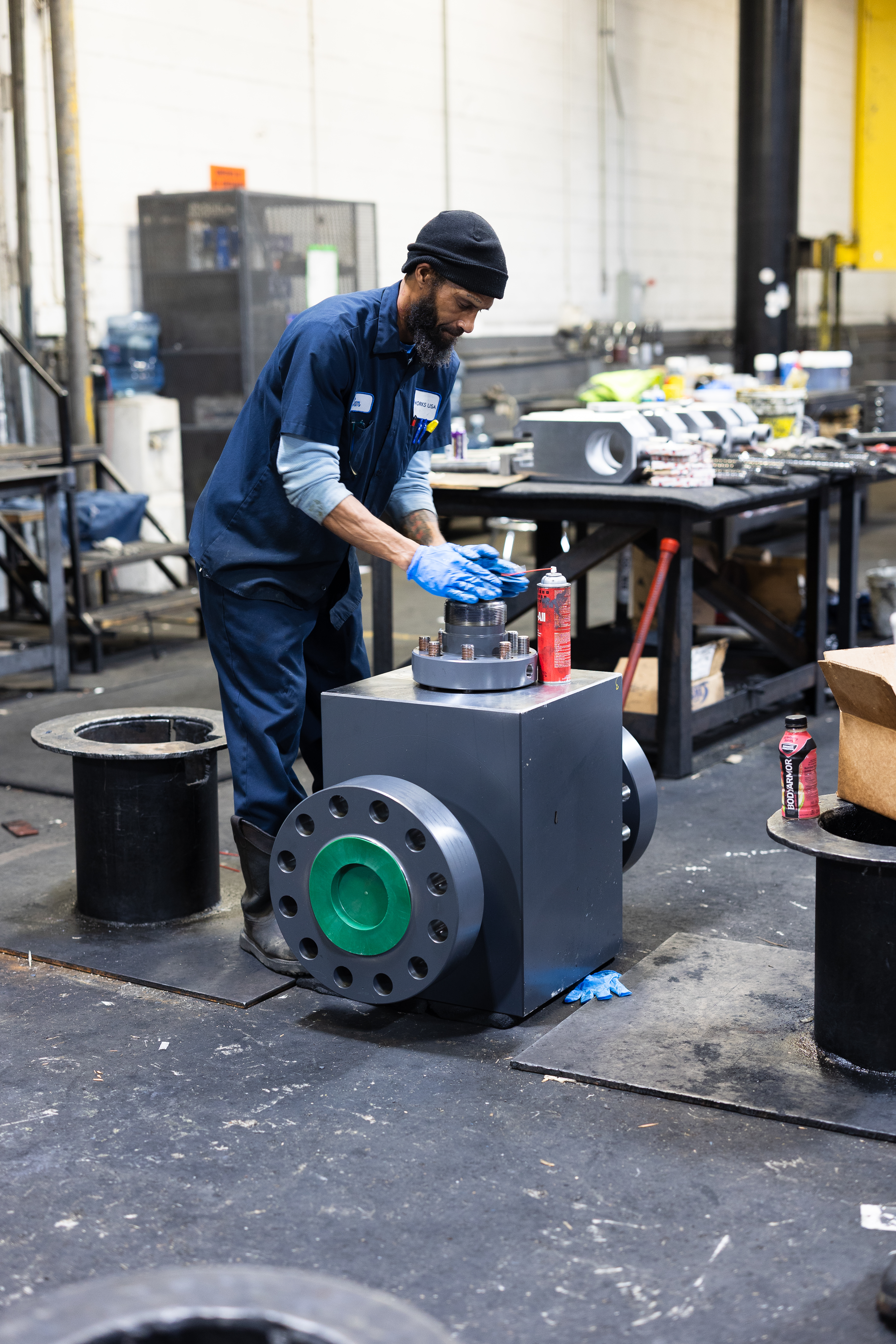

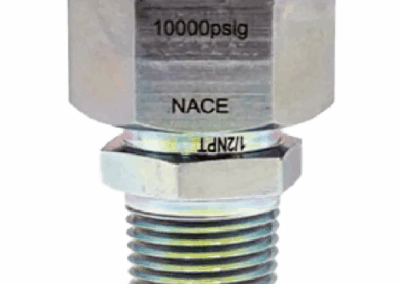

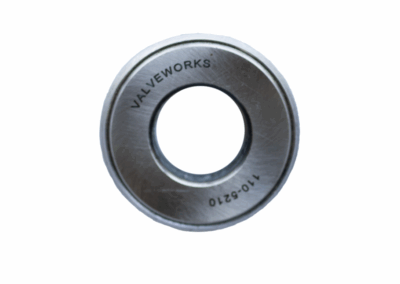

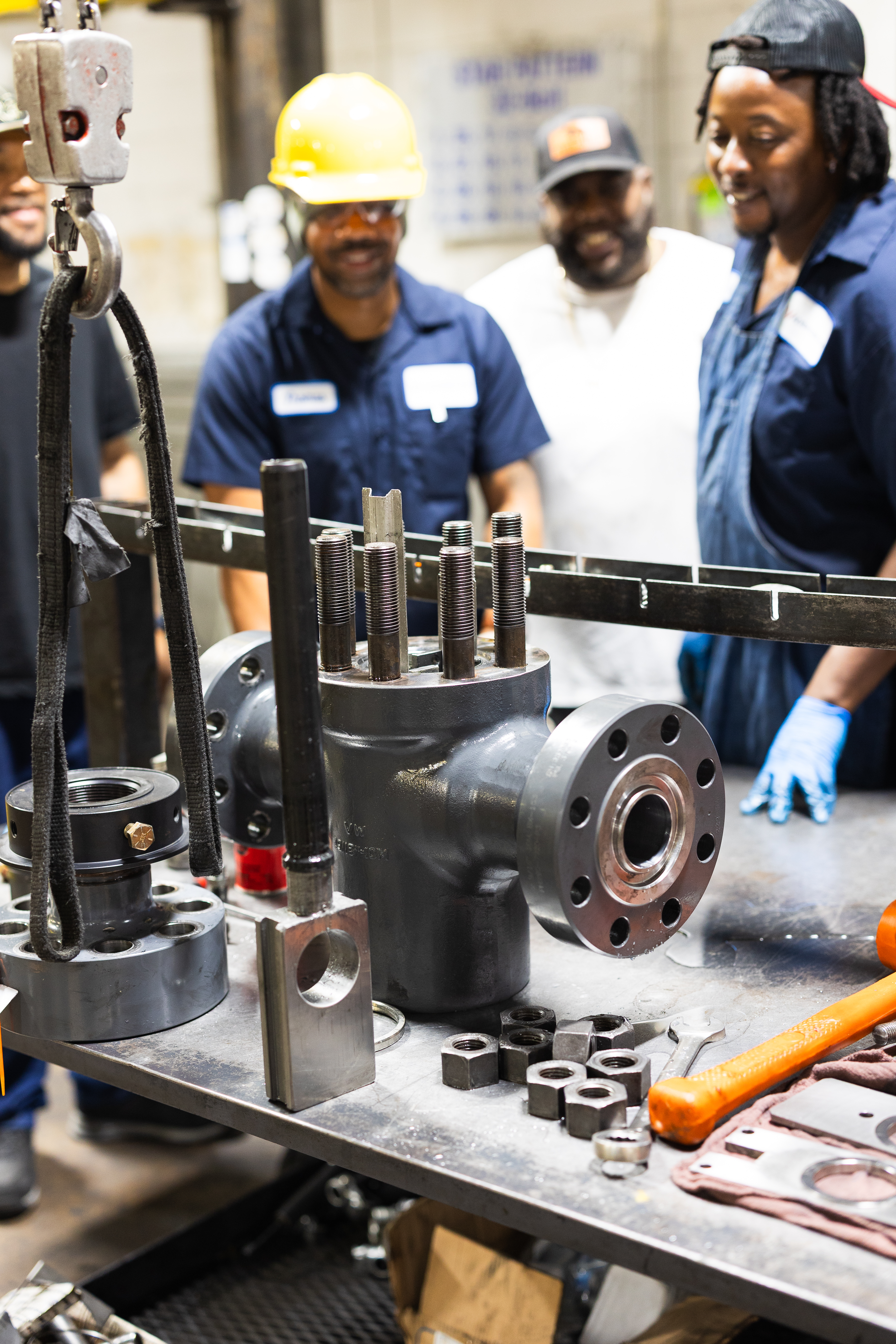

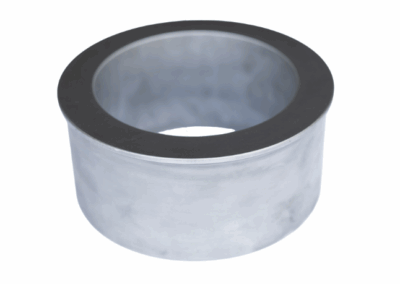

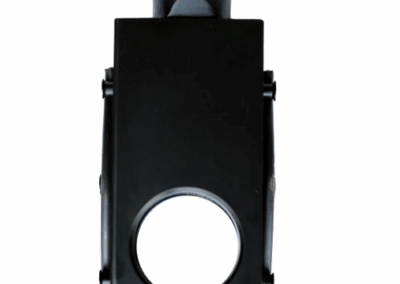

FLANGED GATE VALVES
| SIZE | WP (PSI) | A | B | C | D | E | NT | RJ | BSS | N | WT (LBS) | HT (FT-LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7 1/16 | 2K | 25 1/8 | 7 1/16 | 16 5/8 | 33 1/2 | 24 | 39 1/4 | R-45 | 1 1/4 | 1047 | ||
| 7 1/16 | 3K | 28 1/8 | 7 1/16 | 16 5/8 | 33 1/2 | 24 | 39 1/4 | R-45 | 1 1/4 | 1550 | ||
| 7 1/16 | 5K | 32 | 7 1/16 | 16 5/8 | 33 1/2 | 30 | 39 1/4 | R-46 | 1 1/4 | 1650 |
THREADED GATE VALVES
| SIZE | WP(PSI) | A | B | C | D | E | NT | RJ | BSS | N | WT(LBS) | HT(FT-LBS) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 7 1/16 | 3K | 28 1/8 | 7 1/16 | 30 1/8 | 56 | 28 | 15 1/2 | R-45 | 1 1/4 | 1915 | ||
| 7 1/16 | 5K | 32 | 7 1/16 | 30 1/8 | 56 | 28 | 15 1/2 | R-46 | 1 1/4 | 2015 |
